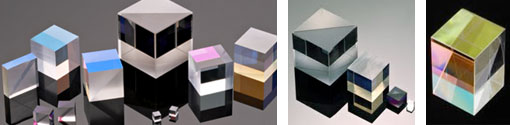

Polarizing Beam Splitter Cubes(PBS Cube)
Description:
Polarizing Beam Splitter Cubes (PBS Cube) are constructed by cemented two precision high tolerance right angle prisms; the hypotenuse of one prism is coated with polarization dielectric coating. It randomly polarized beams into two orthogonal, linearly, polarized components. S-polarized light is reflected at a 90 degree angle while P-polarized light is transmitted.
Specifications:
| Material | Narrow Band: BK7 grade A optical glass |
| Broadband: SF5 optical glass | |
| Dimension Tolerance | ±0.2mm |
| Extinction Ratio | >1000:1 |
| Flatness | λ/4 @ 632.8 nm per 25mm |
| Surface Quality | 60/40 scratches/dig |
| Principal Transmittance | Tp>95% and Ts<1% |
| Principal Reflectance | Rs>99% and Rp<5% |
| Beam Deviation | <3 arc minutes |
| Coatings | Hypotenuse face: Polarization Beamsplitter Coating |
| All input and out faces: AR-coating |
